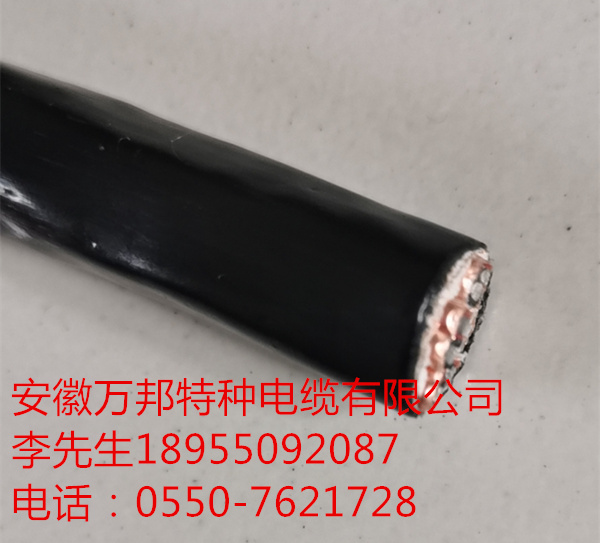

- 商品名称：JE85/SC 2*1
- 添加时间：2020-08-04 16:30:35
介绍：
产品用途：舰船用电缆产品用于各种河海船舶及海上石油平台等各种水上建筑一般控制装置用。
Scope of applications：The product uses in each kind of river sea ships and the marine petroleum platform and so on each kind of aquatic building general control device uses
舰船用电缆执行标准：MIL-C-24643或GJB1916-94
Standards implemented：MIL-C-24643 or GJB1916-94
舰船用电缆型号规格、燃烧特性及额定电压
Models specifications、Combustion and Rated voltage
| 型 号 Models | 燃烧特性 Combustion | 芯 数 Core number | 标称截面 (mm2) Nominal sectional area | 额定电压 (KV) Rated Voltage | 温度 Temp.℃ |
| JE85、JEPJ、JEPJR、JEPJ80、JEPJ90 JEPJ85、JEPJ95 | SC,NSC | 1 | 1-300 | 0.6/1 | 85 |
| 2 | 1-120 | ||||
| 3 | 1-185 | ||||
| 4-37 | 1-2.5 | ||||
| JYJ85、JYJPJ、JYJPJR、JYJPJ80、JYJPJ85 JYJPJ90、JYJPJ95 | SC,NSC | 1 | 1-300 | ||
| 2 | 1-120 | ||||
| 3 | 1-185 | ||||
| 4-37 | 1-2.5 |
产品名称及代号Product descriptions and Codes
| 代号 Codes | 定义 Definition | 代号 Codes | 定义 Definition |
| S | 成束燃烧 Combustion for bunched cable | C | 无卤,低烟,低毒 Halogen free,low smoke,low toxicity |
| N | 耐火(单根燃烧) Fire-proof(Combustion for single cable) |
| 代号 Codes | 绝缘 Insulation | 代号 Codes | 内套 Inner sheath | 代号 Codes | 铠装 Armoring | 代号 Codes | 外套 Outer sheath | 代号 Codes | 特 征 Charac-teristic |
| E | 乙丙橡胶绝缘 EP-rubber insulated | PJ | 交联聚烯烃护套 Cross-linked polyolefin sheath | 8 | 镀锡铜丝编织 Tinned Cu wire woven | 0 | 无外护套 NO-Outer sheath | P | 线芯屏蔽 Line core screen |
| YJ | 交联聚乙烯绝缘 XLPE Insulation | 9 | 镀锌钢丝编织Galvanizes Steel wire woven | 5 | 交联聚烯烃护套 Cross-linked polyolefin sheath | R | 软Soft |
